Traffic Light Simulator

Hardware I used on Breadboard:

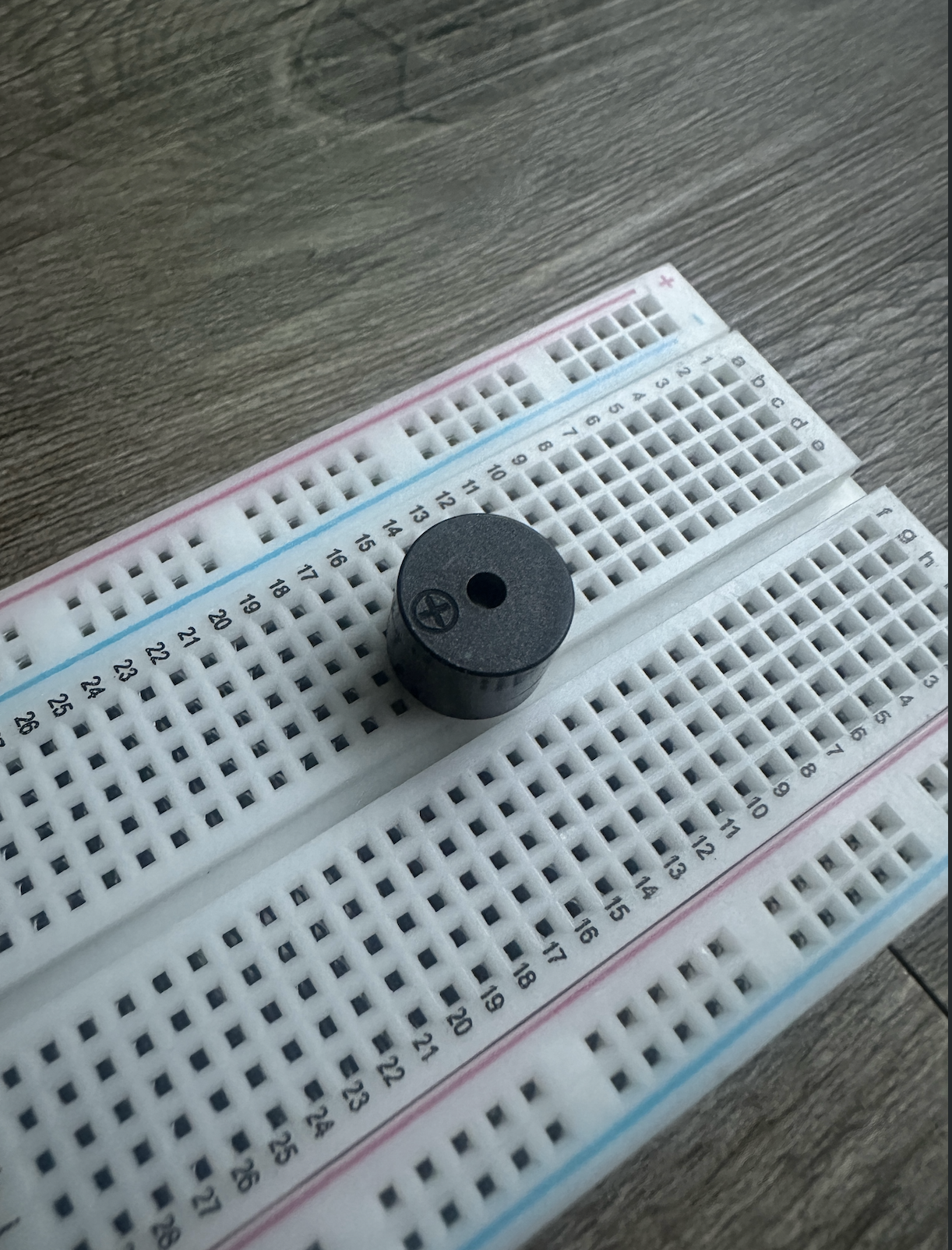

Active buzzer (1)

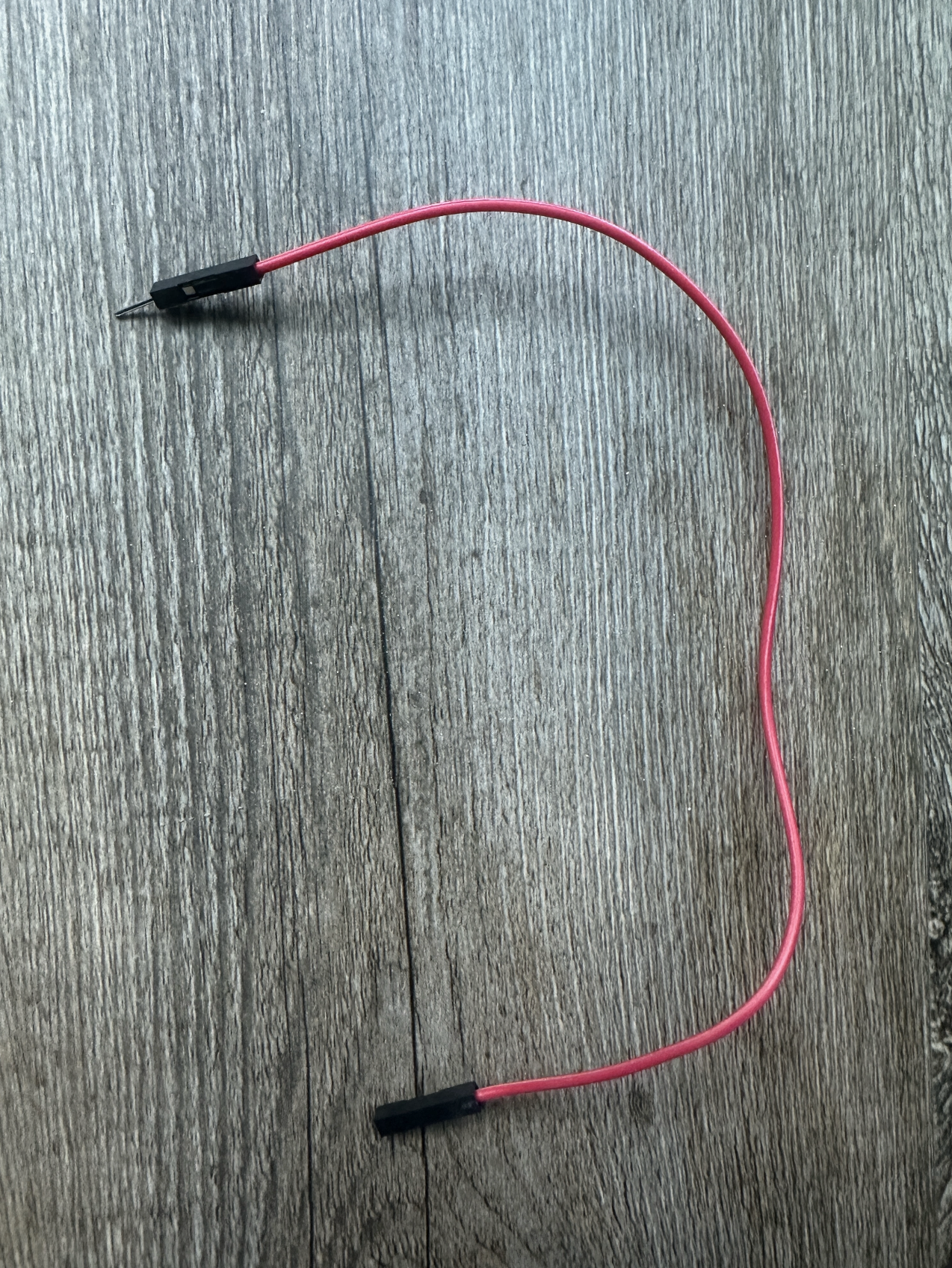

Male to Female jumper wires (2: 1 ground, 1 signal)

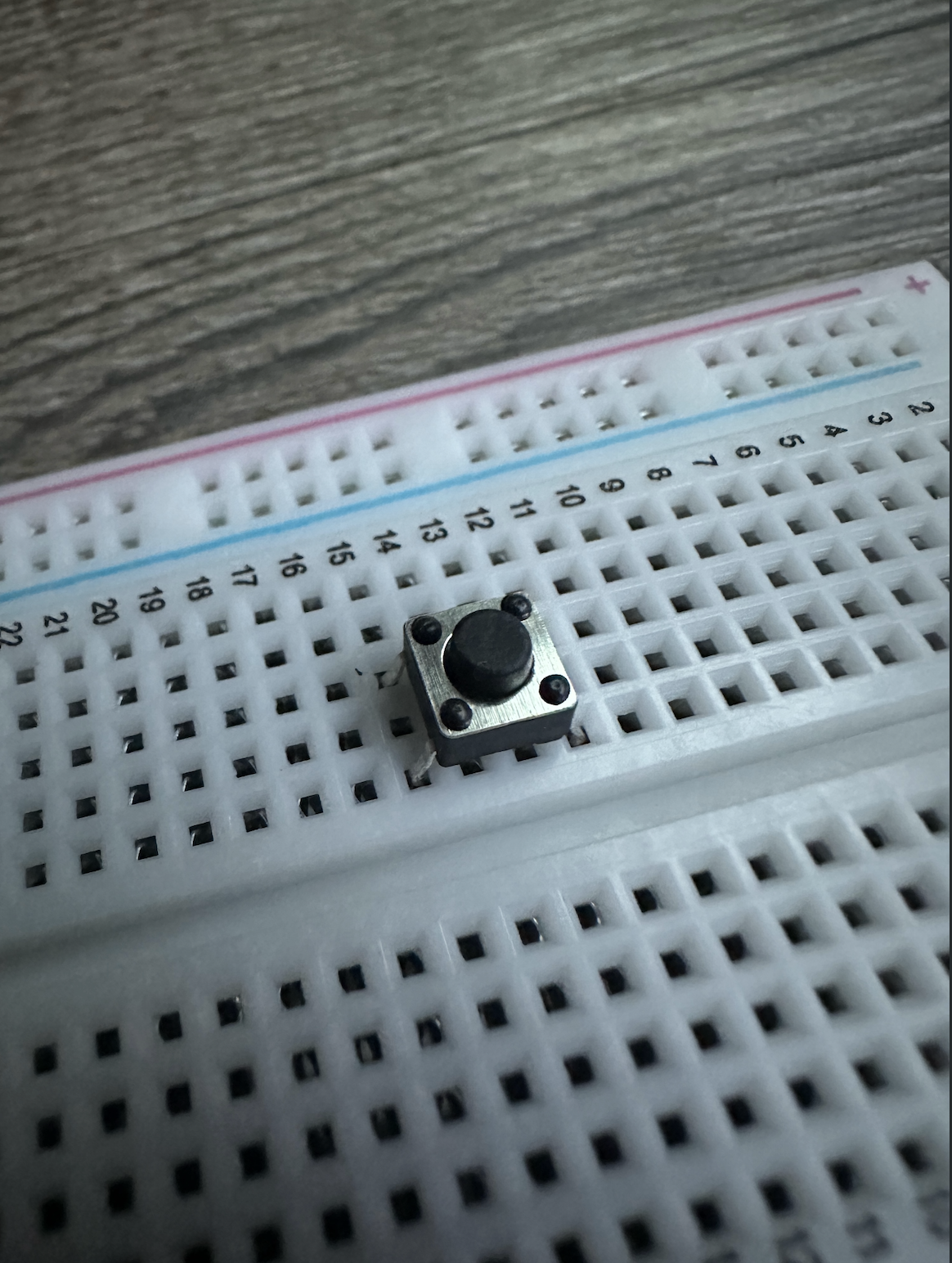

Button (1)

Male to Female jumper wires (2: 1 ground, 1 signal)

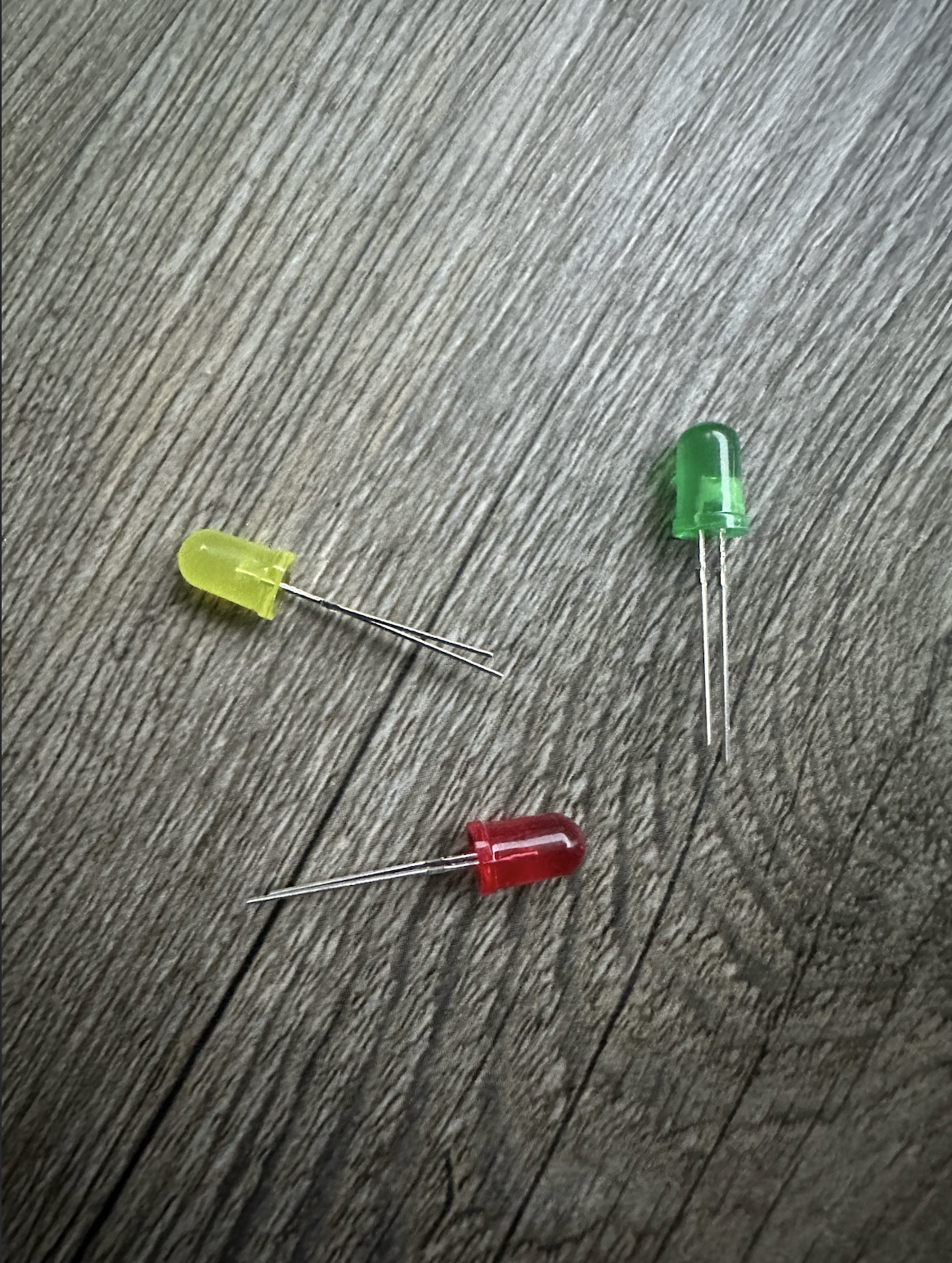

LEDs (3: red, yellow, green)

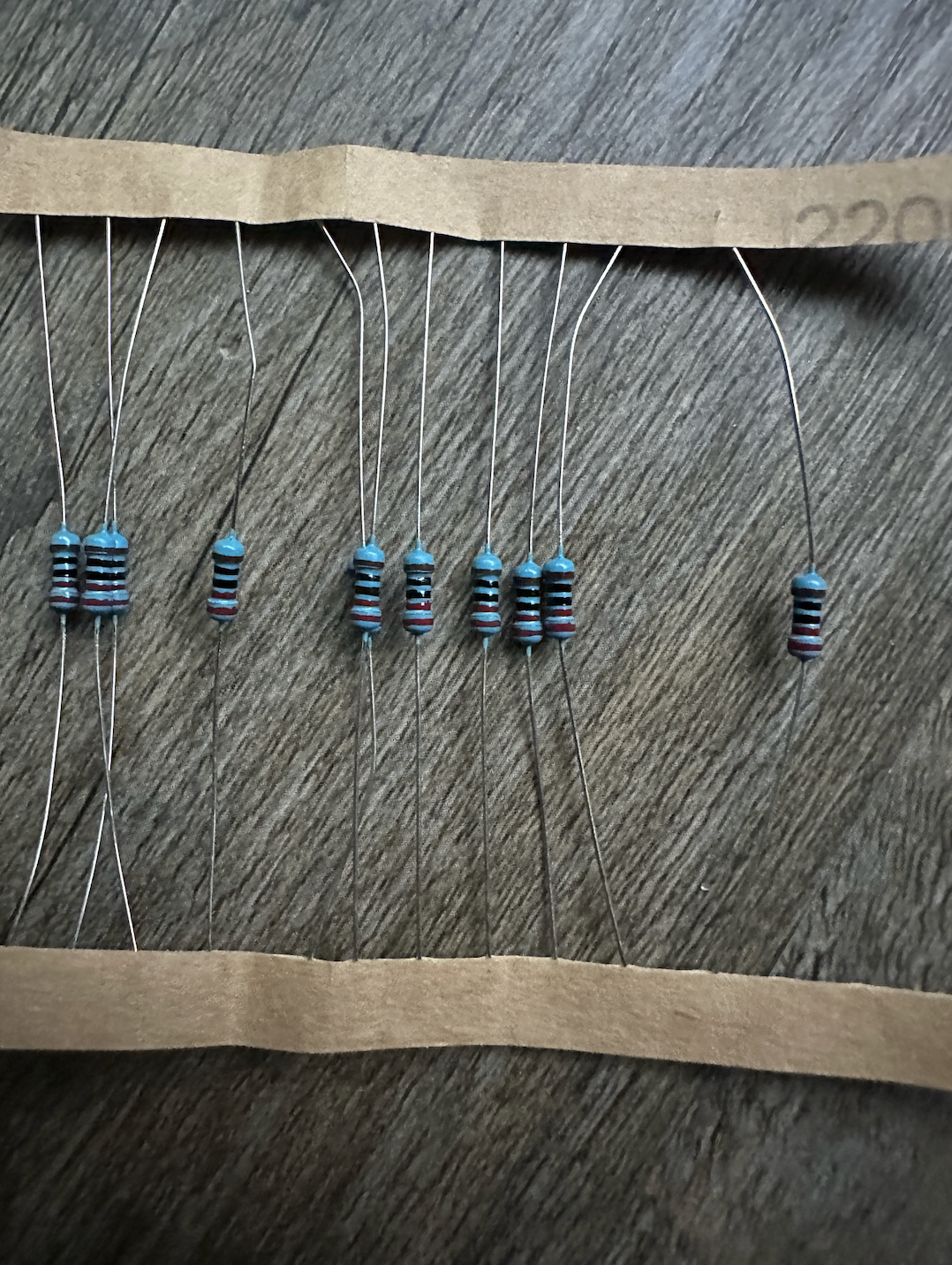

Resistors (3: 220 ohms)
Male to Female jumper wires (4: 1 ground, 3 signal)
