Burglar Alarm

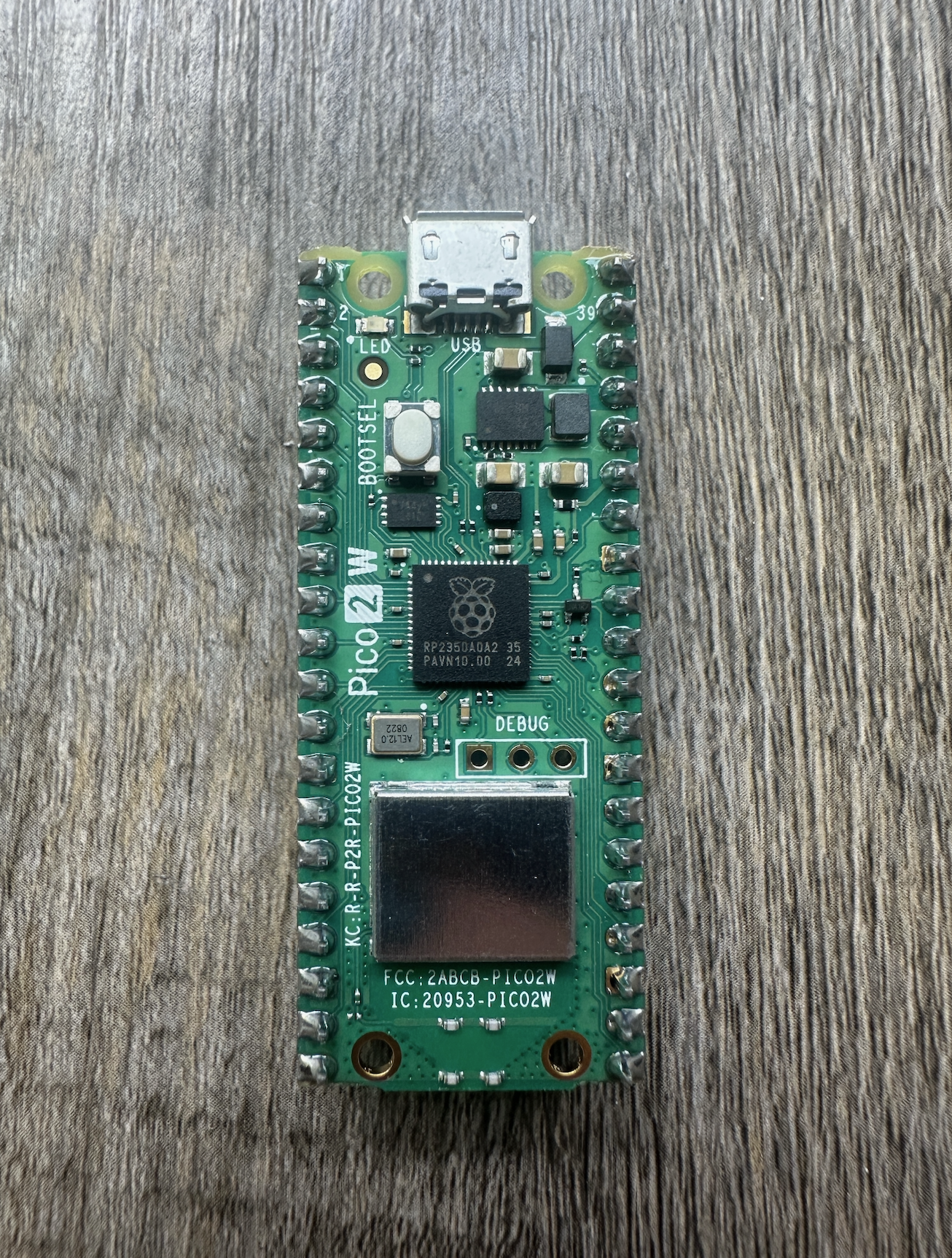

Pico 2W

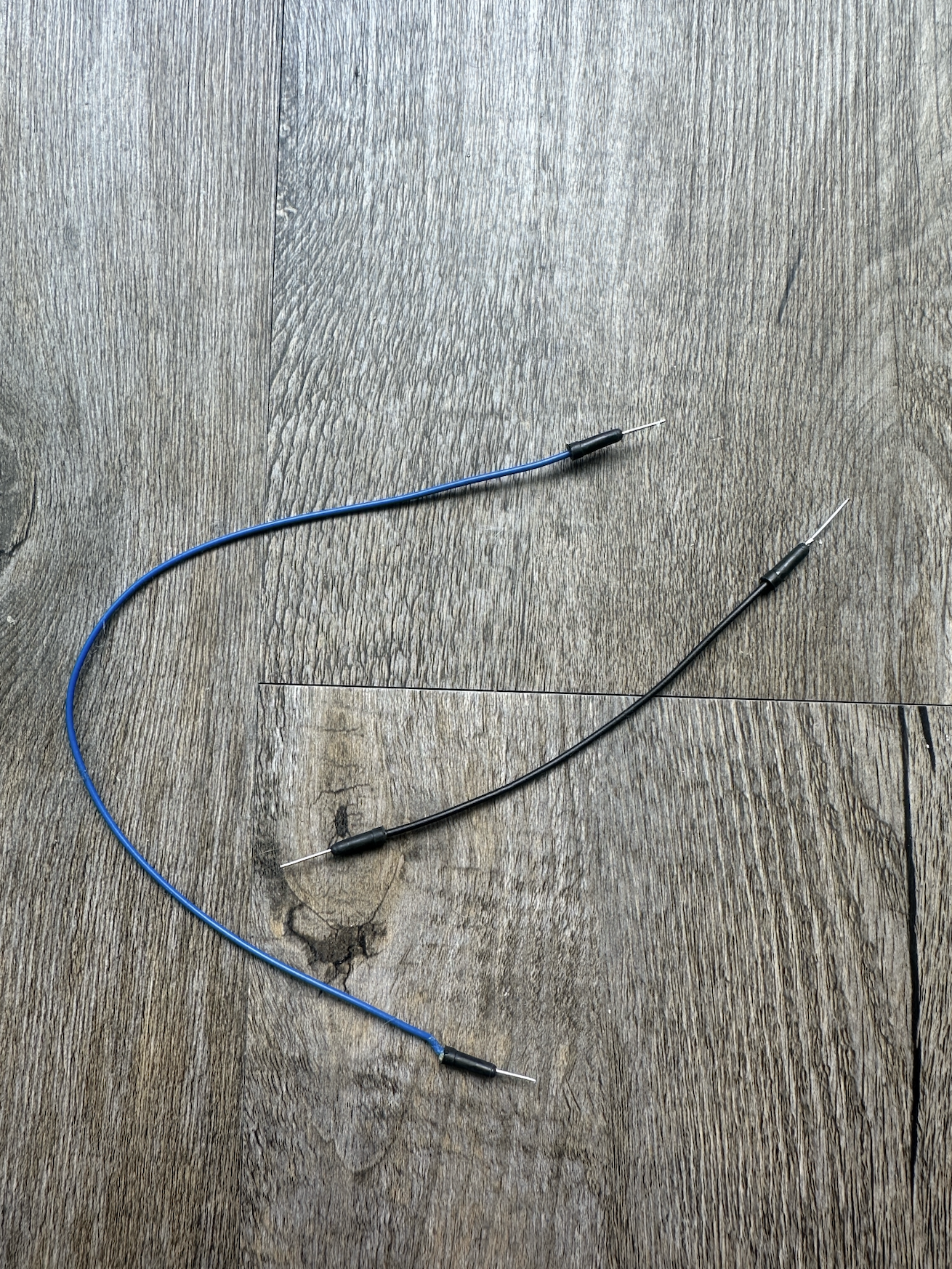

• Male to Male jumper wires (3 total: 1 for VBUS 5V power, 1 signal pin 1, 1 ground pin (-) on the breadboard; see Pi Pico 2 W Pinout)

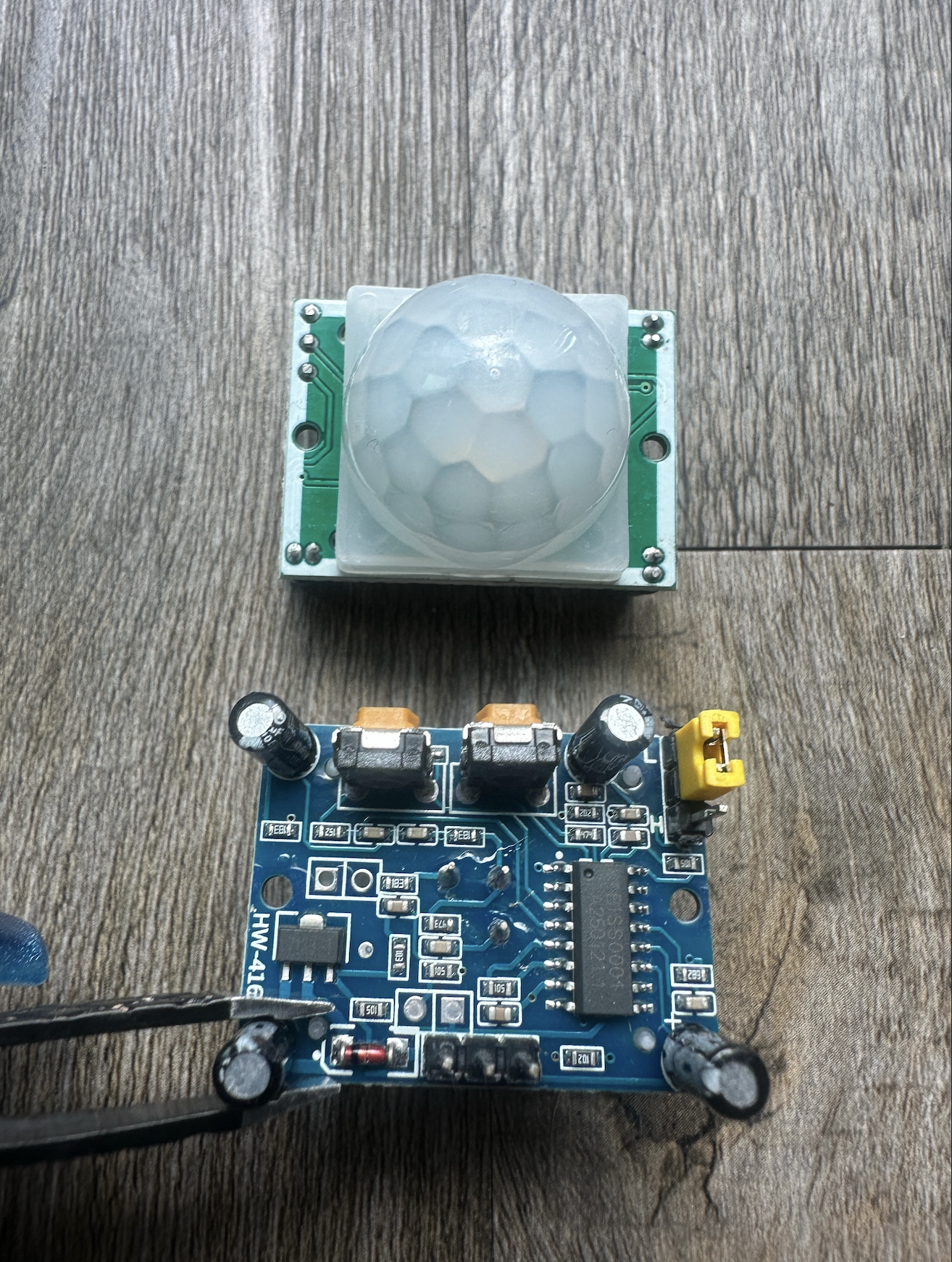

Passive Infrared Sensor (1)

• Male to Male jumper wires (2 total: 1 signal pin 28, 1 ground pin (-) on the breadboard; see Pi Pico 2 W Pinout)

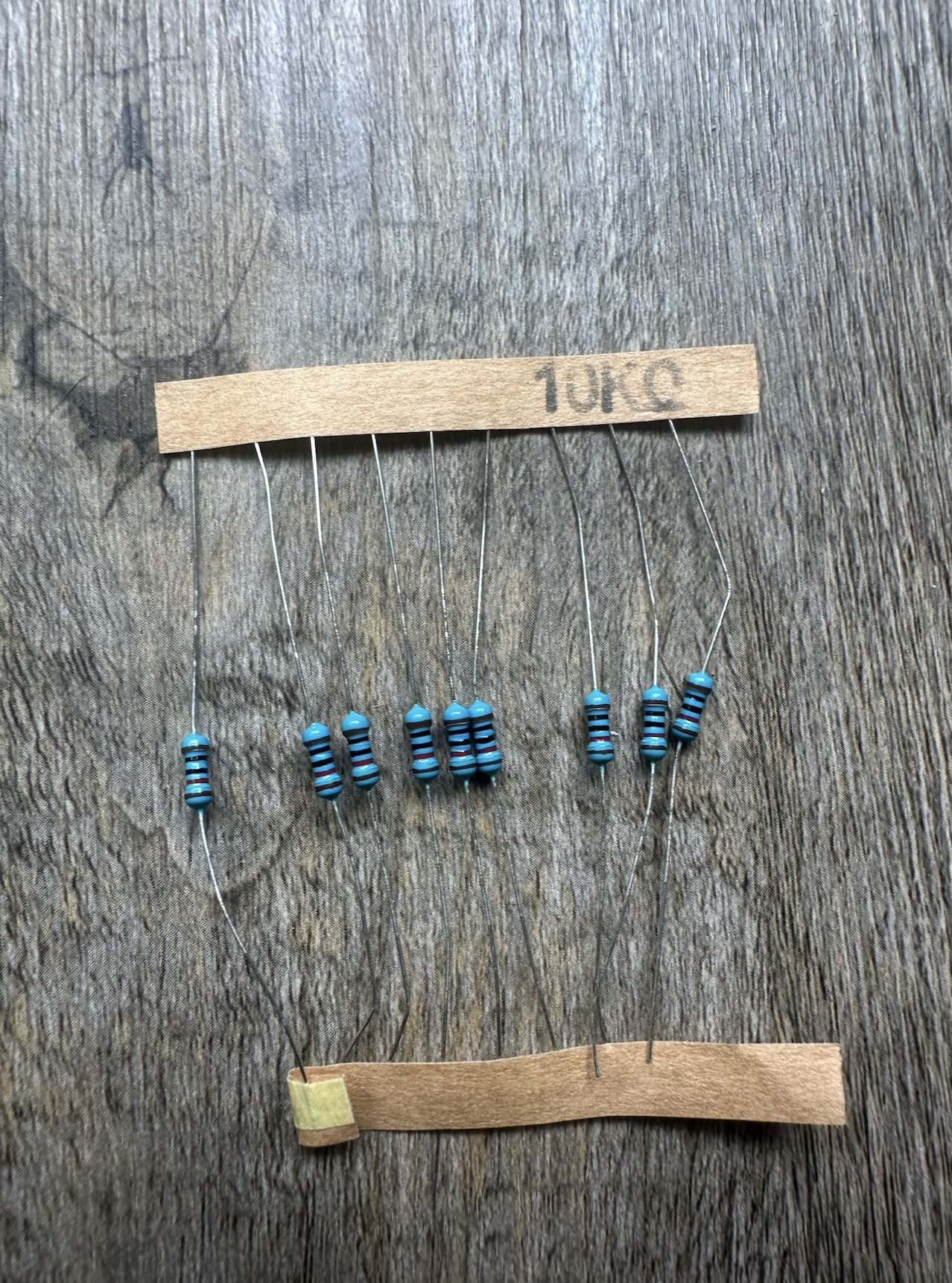

• Resistor (1: 10k ohms)
• Male to Female jumper wires (3 total: All three get plugged into the PIR sensor, 1 signal pin (+) on the breadboard, 1 ground pin (-) on the breadboard, one plugged in next to the 10k ohm resistor and pin 28 signal connector on row 36 of the breadboard)

LED (1) row 36 on breadboard.

• Resistor (1: 220 ohms)
• Male to Male jumper wires (2 total: 1 signal pin 15, 1 ground pin (-) on the breadboard; see Pi Pico 2 W Pinout)

Active buzzer (1) row 48 on breadboard.

• Male to Male jumper wires (2 total: 1 signal pin 14, 1 ground pin (-) on the breadboard; see Pi Pico 2 W Pinout)
